Drilling Machines
Core 1200 Drilling Machine
The Core 1200 fully hydraulic drilling machine is designed for use in underground drilling operations. It can be produced with variable chassis dimensions, and the length of the skid can be adjusted according to specific needs. The walking system is powered by a diesel engine, while the rotary system is driven by an electric motor. The Core 1200 has a drilling capacity of 400 meters with NQ diameter in underground drilling.

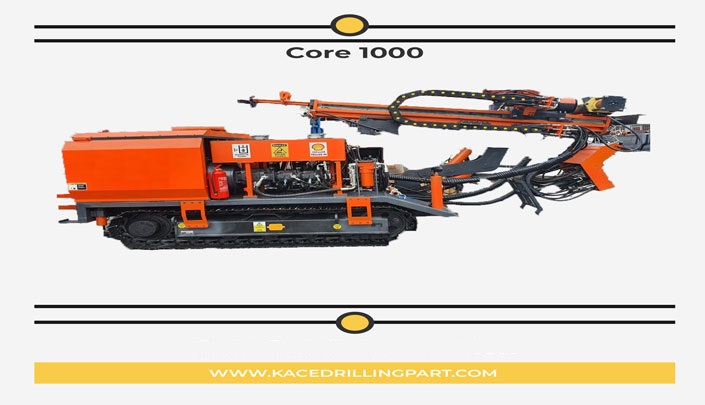

Core 1000 Drilling Machine
The Core 1000 fully hydraulic drilling machine is designed for use in underground drilling operations. It can be produced with variable chassis dimensions, and the length of the skid can be adjusted according to specific needs. The walking system is powered by a diesel engine, while the rotary system is driven by an electric motor. The Core 1000 has a drilling capacity of 400 meters with NQ diameter in underground drilling.
Core 800 Drilling Machine
Thanks to its diesel and electric motors, the Kace 800 drilling machine can operate both underground and on the surface. With a dual-axis rotary table tower unit, it offers unlimited drilling capabilities. The Kace 800 is equipped with an integrated PLC system, which includes electronic start-stop technology, the ability to measure well depth, and full control of the diesel and electric motors via an LCD screen. Additionally, the pressures of all hydraulic units can be easily monitored on the LCD screen.
Core 600 Drilling Machine
The Core 600 fully hydraulic drilling machine can be manufactured for use in both underground and surface drilling operations. In underground drilling machines, the walking system is powered by a diesel engine, while the rotary system is powered by an electric motor. In surface drilling machines, both the walking system and the rotary system are powered by a diesel engine. The Core 600 drilling machines have a drilling capacity of 600 meters with NQ diameter.

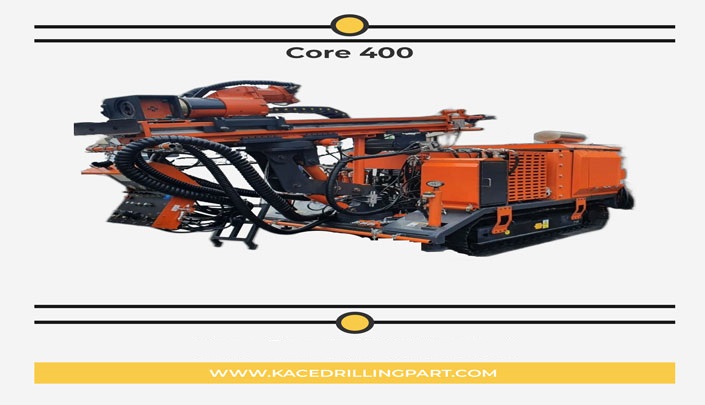

Core 400 Drilling Machine
The Core 400 fully hydraulic drilling machine is designed for use in underground drilling operations. It can be produced with variable chassis dimensions, and the length of the skid can be adjusted according to specific needs. The walking system is powered by a diesel engine, while the rotary system is driven by an electric motor. The Core 400 has a drilling capacity of 400 meters with NQ diameter in underground drilling.
Core 200 Drilling Machine
The Core 200 fully hydraulic drilling machine is designed for use in underground drilling operations. It can be produced with variable chassis dimensions, and the length of the skid can be adjusted according to specific needs. The walking system is powered by a diesel engine, while the rotary system is driven by an electric motor. The Core 200 has a drilling capacity of 200 meters with NQ diameter in underground drilling.

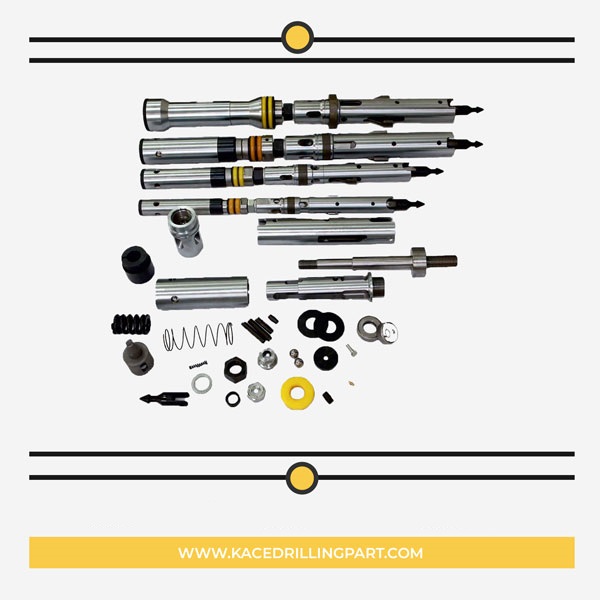

Service & Maintenance
Opting for a revision of your existing machine can be a much more advantageous solution than purchasing a new one. When older machines are refurbished and modernized, they can become as good as, or even better than, new machines. We are ready to prepare your old machine to meet your desired conditions.
• Increase in production speed, precision, and efficiency
• Save on the costs of purchasing new equipment
• After the revision, you will have a machine fully optimized for your specific needs
KACE Makine, with its expert technical team, provides revision, service, and maintenance services for hydraulic drilling machines and equipment, ensuring they comply with today's job safety standards.
• Surface drilling machines
• Underground drilling machines
• Vehicle-mounted drilling machines
Technical Specs
Drilling Machines Technical Specs
| DRILL ROD / TİJ | METRİC | U.S SYSTEM | |
| BQ | 1200 m | 4921 ft | |
| DRILLING CAPACITY / SONDAJ KAPASİTESİ | NQ | 1000 m | 3280 ft |
| HQ | 750 m | 2296 ft | |
| PQ | 350 m | 1148 ft | |
| ROTATION UNIT / ROTASYON SİSTEMİ | |||
| ROD SIZE / TİJ ÇAPI | BQ-PQ | ||
| FINAL DRIVE | HYDRAULIC MOTOR VARIABLE SPEED | ||
| SPINDLE | 117 mm ( 4 5/8 in) | ||
| DIESEL ENGINE / DİZEL MOTOR | |||
| MAX. POWER / GÜÇ | 165K W / 2200 RPM | ||
| MAX TORQUE / TORK | 431 Nm/2000 RPM | ||
| COOLING SYSTEM / SOĞUTMA SİSTEMİ | WATER COOLING / SU | ||
| EMISSION CERTIFICATION / EMİSYON | TIER 3 | ||
| SPINDLE SPEEDS / ŞANZIMAN ORANLARI | |||
| RATİO | SPEED,RPM | TORQUE,Nm | TORQUE,ftlb |
| 1st 6.63:1 | 117-196 | 5113-3051 | 3771-2250 |
| 2st 3.17:1 | 245-410 | 2445-1459 | 1803-1076 |
| 3st 1.72:1 | 451-746 | 1326-792 | 978-584 |
| 4st 1.00:1 | 776-1300 | 771-460 | 569-340 |
| HYDRAULIC SYSTEM FOR DIESEL AND ELECTRICAL ENGINE / HİDROLİK SİSTEM (REXROTH/ KAWASAKI) | |||
| FIRST PUMP / BİRİNCİ POMPA | 140 Lt / Min | ||
| SECOND PUMP / İKİNCİ POMPA | 71 Lt / Min | ||
| THIRD PUMP / ÜÇÜNCÜ POMPA | 45 Lt / Min | ||
| FOURTH PUMP / DÖRDÜNCÜ POMPA | 16 Lt / Min | ||
| MUD PUMP / ÇAMUR POMPASI | |||
| TYPE / TİP | 135 TRIPLEX | ||
| MAX FLOW RATE / DEBİ | 115 Lt/Min | ||
| PRESSURE / BASINÇ | 50 BAR | ||
| CRAWLER BASE / PALET | |||
| CAPACITY / KAPASİTE | 10000 Kg | ||
| SPEED / HIZ | 3 KM/H | ||
| GROUND PRESSURE / BASKI KUVVETİ | 74.5 Kpa | ||
| MAIN WINCH / ANA TAMBUR | |||
| LINE CAPACITY / HALAT KAPASİTESİ | 80 Kn (18000 lb) | ||
| LINE SPEED / HALAT HIZ | 44 m/min (148 ft/min) | ||
| CABLE SIZE / HALAT KESİTİQ | 27 m (89 ft) X 16 mm (10/17 in) | ||
| WIRELINE TAMBUR / BESLEME | |||
| CAPACITY / KAPASİTESİ | 2000 m | ||
| LINE SPEED / HALAT HIZ | 130 m/min – 420 m/min | ||
| LINE PULL / ÇEKME KUVVETİ | 13 kN- 4 kN | ||
| FEEDING SYSTEM / BESLEME | |||
| FEEDING LENGTH / UZUNLUK | 3.5 m (11.5 ft) | ||
| FEEDING SPEED / HIZ | FAST AND SLOW VARIABLE CONTROL | ||
| FEEDING FORCE / KUVVET | 138 kN | ||
| THRUST / İTME KUVVETİ | 59.6 kN | ||
| WORKING DIMENSIONS / ÇALIŞMA ÖLÇÜLERİ | |||
| DIMENSION A / A UZUNLUĞU | 7220 mm / 284 in | ||
| DIMENSION B / B UZUNLUĞU | 10080 mm / 397 in | ||
| DIMENSION C / C UZUNLUĞU | 7490 mm / 295 in | ||
| DIMENSION D / D UZUNLUĞU | 1040 mm/ 41 in | ||
| DIMENSION E / E UZUNLUĞU | 550 mm / 22 in | ||
| DIMENSION F / F UZUNLUĞU | 2600 mm / 102 in | ||
| WORKING DIMENSIONS / ÇALIŞMA ÖLÇÜLERİ | |||
| DIMENSION G / G UZUNLUĞU | 6560 mm / 258 in | ||
| DIMENSION H / H UZUNLUĞU | 2320 mm / 91 in | ||
| DIMENSION I / I UZUNLUĞU | 5150 mm / 203 in | ||
| DIMENSION J / J UZUNLUĞU | 2417 mm / 95 in | ||
